Wednesday, September 22, 2010

Format Negative Numbers

Just a simple little tip this week. I wanted to format numeric data with a custom format. I wanted positive numbers to look like this relatively standard format


But I also wanted negative numbers to show up like:

 1,245.00 -

With the negative sign showing to the right of the number.

At first this was a  this is a bit of a problem.  I figured out a way to do it using OnRender script, but it was kind of ugly.  Turns out the solution is quite a bit more simple. BIRT is using the java DecimalFormat for numeric data in the CustomFormat.  One of the accepted patterns for DecimalFormat is in the form of

 PositivePattern ; NegativePattern

So all you need to do is select Custom Format and enter the format as (see below)

 #,##0.00; #,###.00 -

Monday, September 13, 2010

Open Source Reporting Comparison - BIRT vs. Pentaho vs. Jasper

This is a post by Scott Rosenbaum of Innovent Solutions. It does not necessarily reflect the view of any of the other BIRT project members.

One of the things that I often get asked is how does BIRT compare to BrandX? For the last six years, I have been creating solutions using BIRT, so the easy answer would be just use BIRT. Unfortunately it is not that simple.
Innovent Solutions' corporate goal is Enabling Intelligent Decisions® and we use a variety of commercial and open source tools to achieve that goal. Over the last fifteen years, experience has taught us:

  • Analysis, communication, and project management are the keys to BI and reporting success
  • Any sufficiently mature technology can be successful in the right situation
So how does BIRT compare to BrandX? requires a bit more than just use BIRT. Most of the answer depends on the business issue that we are trying to solve. But we also have to evaluate if BrandX has reached the point of being sufficiently mature.
Over the last three years three open source business intelligence and reporting projects have emerged as leaders. BIRT, JasperReports, and Pentaho dominate the open source business intelligence and reporting space. In my opinion, BIRT reached the minimum maturity level with its 2.2 release in 2007, since then the product has continued to mature through three annual releases (2.3, 2.5, 2.6).
So what about Jasper and Pentaho, how do their features compare to BIRT, and are they sufficiently mature? In an effort to come up with a better answer, Innovent Solutions has conducted a product comparison of the open source report development tools from each project.
The full evaluation is available on the the Innovent Solutions web site (free, no registration). The starting point for the product comparison can be found at Product Comparison Overview. If you are interested in specific comparisons, we have one for BIRT versus Jasper and another for BIRT versus Pentaho. We also created a side by side feature comparison the Open Source Comparison Matrix (BIRT, Jasper, Pentaho).
NOTE: I would love to hear what you think of the Innovent comparison, but I would like to keep the focus of this blog on BIRT. For this reason I have turned off comments for this post. Comments about the comparison should be made from the Product Comparison Overiew page on the Innovent Solutions web site.

Wednesday, September 08, 2010

Beyond BIRT Basics - Roadshow

The advanced BIRT Roadshows will begin next week in Boston, New York and DC.
These events feature a free day of training on advanced BIRT topics, like understanding the event model, chart and report item scripting, implementing high performance reports, and making BIRT mobile.

The schedule for the month of September is listed below.

Upcoming Accelerated BIRT Roadshows
Boston – Tuesday, September 14
New York – Wednesday, September 15
DC – Thursday, September 16
Bay Area – Tuesday, September 28

If you are interested, sign up quickly, as space is limited.

Thursday, September 02, 2010

BIRT Image - Report Item

BIRT has many ways to include images within a report. Images can be used in BIRT styles, as watermarks, in text elements, and placed within the report using an image report item. In this post I will cover some of the details needed to work with images that are inserted using the Image report item.

The image report item can retrieve images in four different ways. 1 -Through a URI, 2 – as an image in the resource folder, 3 – as an embedded image, 4 -or by using a dynamic image. Each of these methods is described below with examples. In addition some of the examples use onCreate scripts written in JavaScript. While these examples use JavaScript, they could also have been written in Java.

URI Images
The first way is to retrieve an image with the image report item is to use a URI specification. This method is pretty straight forward and the value can be entered as a constant or as a JavaScript expression. Constants are processed faster by the engine but are harder to make dynamic. An example of a constant expression for a URI image would be as follows:

Note: Do not put quotes around the expression unless JavaScript Syntax is selected. An example of using a JavaScript expression is presented below.

if( params["dynamicimage"].value == true ){
This expression checks the value of the dynamicimage report parameter, and then based on its value, sets the value of the URI.
The URI can also be set using an onCreate event handler for the image report item. The syntax for this approach would look like:
this.URI = "";

//for a local file use:
//this.URI = "file://C:/test/birtlogo.png";

Resource Folder Images

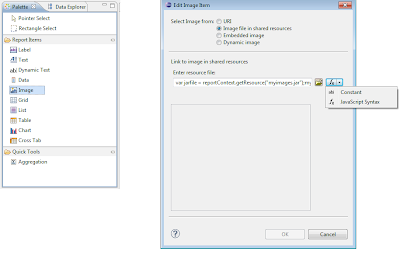

BIRT uses a resource folder for storing report libraries, style sheets, images, jars, js files, properties files or virtually any file that you will need access to at runtime. While in the design environment the resource folder location can be set using the Windows->Preferences->Report Design->Resource setting. This can be set for the entire workspace or on a per project basis. At runtime you can set the resource folder in the web.xml if you are using the viewer. If you are using the engine API you can set the resource folder using the EngineConfig class’ setResourcePath method. When using a resource folder image, all that is needed is to specify the image name as it is defined in the resource folder. You can also set a JavaScript expression for the image name. For example:

if( row["QUANTITYORDERED"] > 30 ){
}else if( row["QUANTITYORDERED"] > 25 && row["QUANTITYORDERED"] <= 30){

This expression checks the row data to determine which resource folder image should be rendered. The same type of checks can be made if you are using the onCreate script event for the image element.

var myqty = this.getRowData().getColumnValue("QUANTITYORDERED");
if( myqty > 30 ){
this.file = "green.png";
}else if( myqty > 25 && myqty <= 30){
this.file ="yellow.png";

One thing to note in the above is that the column value QUANTITYORDERED is the binding column name, not the dataset column name. See the binding tab on the table in the attached example.
Images can also be placed in jar files within the resource folder. If your image exists in a jar file, you can use a script expression similar to the following to specify the image to retrieve.

var jarfile = reportContext.getResource("birtimages.jar");
myfulljarimage = "jar:"+jarfile.toString()+"!/green.png";

The getResource method of the reportContext object is used to return the location of a file in the resource folder. Using the location of the file and the jar protocol, the image can be specified.

Embedded Images

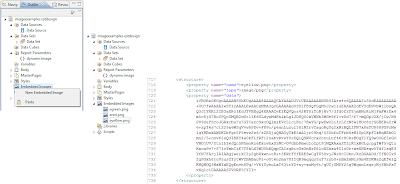

BIRT allows images to be encoded directly into the xml report design. Images can be added by right clicking on the embedded images icon in the outline view of the report and selecting “New Embedded Image”. After selecting the image, the outline view is updated and the data for the image is encoded in to the design. You can also add embedded images to the report using the add image button of the image report item editor.

Once the images are embedded into the report, you can add the image report item to the desired location, choose the embedded image radial, select the image name and click the insert button.

If you wish to change the image dynamically, this can be done using an onCreate script. In the onCreate script specify the image name using the imageName property.

this.imageName = "eyellow.png";

Dynamic Images

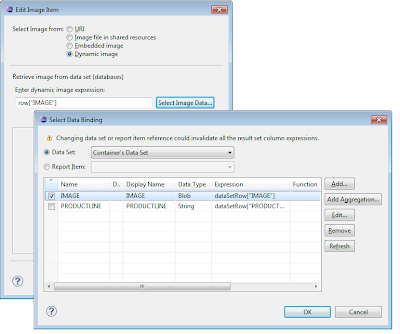

Dynamic images allow Blob images to be inserted into the report. Typically this type of image is tied to a data set column through either the image’s dataset bindings, or the container element’s bindings (eg Table). The sample database, which is delivered as part of BIRT, contains a Blob type column in the PRODUCTLINES table. The example report used in the post has an example of using this column in conjunction with the image report item.

A developer can also use an onCreate event script to set the image data. When doing this, the image data should be in a byte[]. Presented below is an onCreate script that uses the ImageIO class to read a file, a URL, an image from the resource folder, or an image in a jar file in the resource folder. Uncomment the section of the script for the desired image location.


//File Based
//var myfile = new"c:/test/green.png");
//var img =;

//URL Based
//Jar image in resource folder
var jarfile = reportContext.getResource("birtimages.jar");
var myfulljarimagestr = "jar:"+jarfile.toString()+"!/red.png";
var myurl = new;

//Image in resource folder
//var myurl = reportContext.getResource("green.png");

//Image at url
//var myurl = new"");

var img =;
bas = new ByteArrayOutputStream();
ImageIO.write(img, "png", bas); = bas.toByteArray();

The example used for this post is available at Birt-Exchange. To setup the example, copy the birtimages.jar and the three supplied images to your resource folder.
